JGM系列单相电源滤波器
产品特点 Features
优异的共模、差模干扰抑制特性。
可按不同性能，工作电流，电压，外形尺寸和端接方式等要求定制
Customization design for different requirements such as performance,rated current,rated viltage,shape dimention and termination methods.
使用场合 Application
抑制沿电源线传输的无线电干扰，交流单相供电的高可靠性，工作环境要求苛刻的设备.
| JG系列单相交流系列 | |||||||||||||||
| 额定电压 Rated Voltage | 250/115VAC | ||||||||||||||
| 工作频率 Operating Frequency | 50/60Hz | ||||||||||||||
| 耐压试验Test Voltage | 线—线 L―L | 1768VDC | 1min | ||||||||||||
| 线—地 L―G | 2000VAC | 1min | |||||||||||||
| 泄漏电流 | <1mA（或定制） | 250VAC@50Hz | |||||||||||||
| 温度范围 temperature range | -55℃–+85℃ | ||||||||||||||
|
型号 |
额定
电流 (A) |
外形尺寸
图号 |
原理电路
图号 |
插入损耗（dB） 共模/差模 （CM//DM） | |||||||||||
| 测试频率(MHz) | |||||||||||||||
| 0.01 | 0.05 | 0.10 | 0.15 | 0.5 | 1.0 | 5.0 | 10 | 20 | 30 | ||||||
| AAM-1A-00 | 1 | A | A | 10/5 | 23/10 | 29/15 | 32/19 | 42/30 | 48/39 | 53/51 | 57/57 | 68/58 | 62/60 | ||
| AAM-2A-00 | 2 | A | A | 8/5 | 19/10 | 23/15 | 30/19 | 35/28 | 41/35 | 53/49 | 57/53 | 68/62 | 62/62 | ||
| BDM-1A-20 | 1 | B | D | 18/7 | 23/18 | 45/22 | 55/25 | 70/68 | 74/74 | 74/74 | 72/72 | 70/70 | 68/68 | ||
| BDM-3A-20 | 3 | B | D | 10/7 | 18/16 | 25/22 | 35/24 | 54/29 | 64/70 | 74/74 | 74/74 | 72/75 | 70/72 | ||
| BCM-1A-20 | 1 | B | C | 18/8 | 31/38 | 37/53 | 39/51 | 63/63 | 71/63 | 63/63 | 65/63 | 70/59 | 76/62 | ||
| BCM-3A-20 | 3 | B | C | 13/8 | 24/37 | 27/40 | 27/39 | 39/49 | 59/63 | 65/57 | 63/54 | 62/53 | 62/56 | ||
| DFM-2A-40 | 2 | D | F | 16/10 | 21/21 | 45/41 | 56/53 | 76/76 | 76/76 | 77/77 | 77/77 | 68/72 | 68/66 | ||
| DFM-3A-40 | 3 | D | F | 14/10 | 15/15 | 41/35 | 54/47 | 76/76 | 76/76 | 77/77 | 77/77 | 70/66 | 66/68 | ||
| DFM-2A-31 | 2 | D02 | F | 16/10 | 21/21 | 45/41 | 56/53 | 76/76 | 76/76 | 77/77 | 77/77 | 68/72 | 68/66 | ||
| DFM-3A-31 | 3 | D02 | F | 14/10 | 15/15 | 41/35 | 54/47 | 76/76 | 76/76 | 77/77 | 77/77 | 70/66 | 66/68 | ||

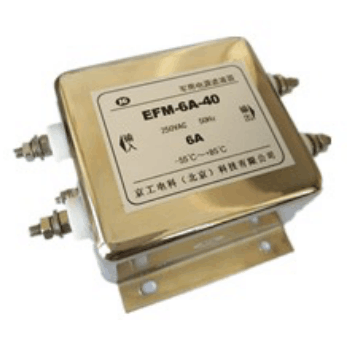

| EFM-6A-40 | 6 | E | F | 17/6 | 23/14 | 50/36 | 56/48 | 70/70 | 68/70 | 70/72 | 70/72 | 74/74 | 68/68 | ||
| EFM-10A-40 | 10 | E | F | 6/8 | 15/28 | 18/29 | 33/45 | 57/68 | 70/74 | 70/72 | 65/65 | 63/66 | 60/66 | ||
| FFM-20A-40 | 20 | F | F | 6/8 | 15/28 | 18/29 | 33/46 | 57/63 | 74/70 | 74/73 | 70/72 | 63/66 | 60/64 | ||
| SFM-6A-41 | 6 | S | F | 17/6 | 23/14 | 50/36 | 56/48 | 70/70 | 68/70 | 70/72 | 70/72 | 74/74 | 68/68 | ||
| SFM-10A-41 | 10 | S | F | 6/8 | 15/28 | 18/29 | 33/45 | 57/68 | 70/74 | 70/72 | 65/65 | 63/66 | 60/66 | ||
— 共模（CM）,— 差模（DM） CM/DM
50Ω测量系统,GB7343/CISPR NO.17出版物 Measured in 50 ohm system ,as GB7343 or CISPR NO.17
